SJ Research - MDFS

My MDFS came from school - as I left it was replaced, luckily after looking after it for a good few years I was able to keep it. I've had to fix it a few times :(

I was able to obtain a manual for it, supplied in paper form by Ian Wolstenholme of BeebMaster it's provided here in PDF form.

• Release Notes
• SJ User Group

• Chapter 1
• Chapter 2
• Chapter 3
• Chapter 4
• Chapter 5
• Chapter 6
• Chapter 7
• Chapter 8
• Chapter 9
• Chapter 10

• Appendix A
• Appendix B
• Appendix C

A zip file containing all of the above is available - mdfs_manual.zip.

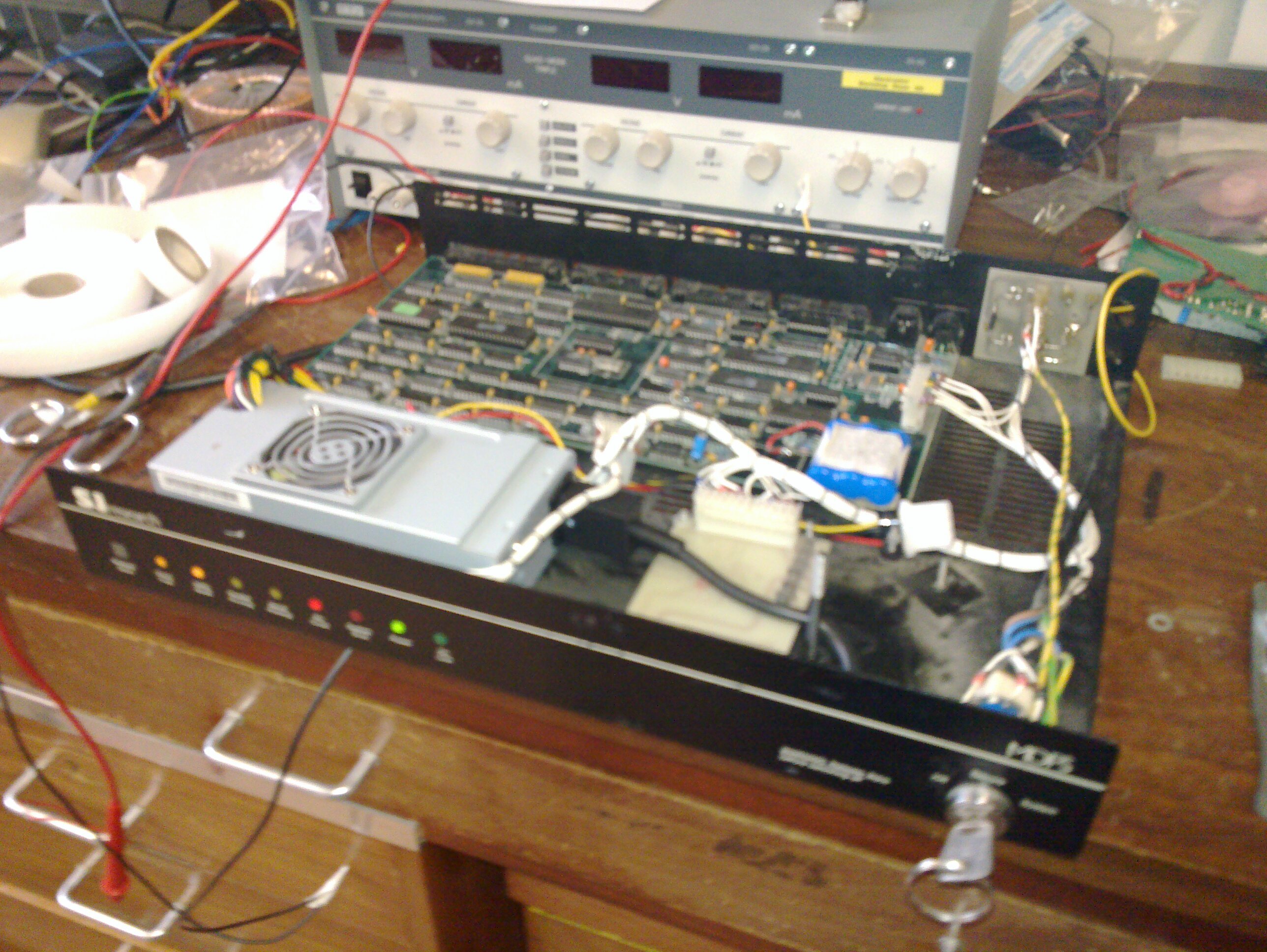

The PSU in my MDFS passed away - thankfully it did no damage when it died, and it was an easy process to graft in one from a PC. I must write it up properly but it's possible.


I've put some not very clear pictures of the process here. PSU Images.
